Intermittent bonded ribbon production line explained
Shanghai Weiye Optic Fiber Communication Equipment Co., Ltd. provides equipment for producing rollable formats used in optical-fiber manufacturing. This setup is designed for 12- and 16-fiber ribbons, allowing buyers to assess its capacity against their planned product range. Factory space and installation needs may also be affected by the system’s split-type construction.
Fiber Draw Tower FTTH Cable Production Line Fiber Draw Tower
For this specific production line, the specified construction speed is 600 m/min. The process combines fiber pay-off, gathering and guiding, intermittent resin dispensing, UV-LED curing, visual monitoring, capstan pulling, and take-up. The complete process is important to evaluate, not just the stated speed.
Before purchasing, check factory utilities, reel requirements, available floor space, and installation conditions. Request the supplier’s documentation package and verify that the system matches your cable design and operating needs. Early planning for these details can reduce setup delays and make startup smoother.
Main Takeaways
- Intended to produce rollable 12- and 16-fiber formats.
- Listed speed: 600 m/min for this equipment.
- Uses a split-type construction.
- Includes curing, monitoring, pulling, and take-up stages.
- Check utilities, reels, installation needs, and supplier documents before buying.

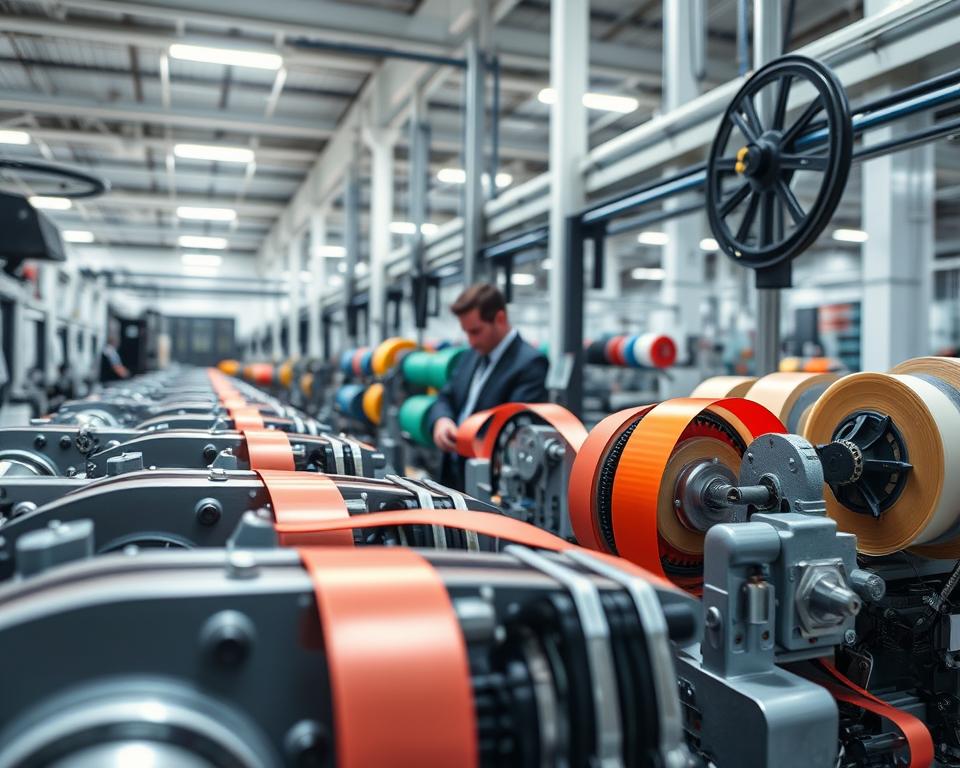

Intermittent Bonded Ribbon Production Line
Explore The Intermittent Bonded Ribbon Production Line
To create rollable IBR formats, three mold groups arrange fibers for the application of small adhesive dots. Mold position is adjustable by operators from 0 to 15 mm, helping maintain consistent spacing and form.
Produce Rollable Fiber Ribbons With Precision Bonding
A 16-spool pay-off feeds the machine, while guide rollers with U-shaped grooves keep individual strands organized. Hard-anodized roller surfaces promote steady contact during processing. The adjustable valve arrangement supports 12F and 16F layouts, using 5+5+1 valves for 12 fibers or 5+5+5 for 16. Ask the supplier to verify tension control settings that suit your particular cable design.
Run 12- And 16-Fiber Configurations At Up To 600 m/min
Construction speed is specified at up to 600 m/min. Pay-off reel options hold 25.2 km or 50.4 km of fiber according to the listed reel dimensions: Φ236 mm × Φ25.4 mm × 108 mm and Φ267 mm × Φ25.4 mm × 180 mm. The system also provides T-type or fiber-optic take-up reels. Compare reel capacity with your production requirements and expected changeover time.
Review The Production Line’s Key Equipment And Controls
Tension, resin placement, and UV exposure must work together to maintain reliable output. Operators can use the system to align settings with the needs of their cable design and fiber ribbon.
Manage Fiber Tension, Resin Dispensing, And UV-LED Curing Together
Electro-pneumatic adjustment is used for each pay-off unit. Through the interface, operators set adhesive-dot spacing and counts while dispensers work individually or in linked groups.
Before UV-LED post-curing, three pre-curing ovens work with the mold groups. Ask the supplier to check resin compatibility and the relevant operating conditions.
Lamp current, oven temperature, alarms, and preset lengths are displayed or managed through the Siemens PLC and touchscreen. Check the necessary cabinet and power supply arrangements before purchasing.
| Process Stage | Technical Specification | Buyer check |
| Fiber tension | Pay-off: 0.4 to 2 N, ±0.02 N; capstan: 50 to 500 g, ±5 g accuracy | Align settings with cable requirements |
| Dispensing of resin | Individually operated or linked units with adjustable adhesive-dot spacing and count | Check interface configuration |
| Curing With UV-LED | Three pre-curing ovens rated 800 W each; one post-curing oven rated 6 kW; 395 nm ± 3 nm; at least 85% cure during stable, high-speed operation | Verify compatibility with the resin |
| Monitoring | Siemens S7-1200 or S7-1500 PLC; 10.4-inch touchscreen; live lamp current and oven temperature, alarms, preset lengths | Check cabinet and power supply |
Plan Installation, Operating Conditions, And Line Configuration
Prepare a dedicated area before the equipment arrives. The optical fibre system requires an enclosed, clean, dry, and draft-free space. Keep the temperature from 15°C to 25°C, with humidity at or below 85%. These conditions help protect fiber equipment and maintain precision during operation.
Review site utilities, electrical capacity, cabinet space, and cable design with your facilities team. Nitrogen at 7 bar with 99.99% purity and compressed air at 6 bar are required for the system. A three-phase, five-wire electrical supply rated 380 V ±10% is specified.
- Allow space for the cabinet, components, resin, and access to service parts. Before starting the line, confirm the temperature settings and tension control.
- Account for the specified reel size of Φ410 mm × Φ50.8 mm × 391 mm. Reels of up to 30 kg can be handled by the take-up unit.
- Account for the main power feed-in cable when planning the site. Connection cables and cable trays are not included with the equipment.
Before ordering, confirm the supply scope, reel types, and installation requirements. This assessment can reduce setup time and help prevent later delays. Ask the supplier to verify settings for your fiber and cable design, including lamp accuracy and operating conditions. Clear planning supports a smoother startup for the production system.
Request Pricing For A Ribbon Production Solution Tailored To Your Needs
Manufacturers seeking rollable 12- or 16-fiber formats can evaluate this line at its stated speed of 600 m/min. When requesting a quote, share your fiber layout, output goals, cable requirements, reel preference, and factory conditions.
Check the proposed system for its 16-spool pay-off, UV-LED curing setup, take-up capacity, and available options. Before ordering, review the included components, dispensing-head options, unit functions, and cable design.
The documentation list covers operating and maintenance manuals, a general layout drawing, electrical schematics, and a wear-parts list. Reviewing these documents can clarify setup time and future service requirements.
For pricing and configuration details matched to your production plan and site utilities, contact Shanghai Weiye Optic Fiber Communication Equipment Co., Ltd. Before buying, check the scope of supply and replacement parts.
